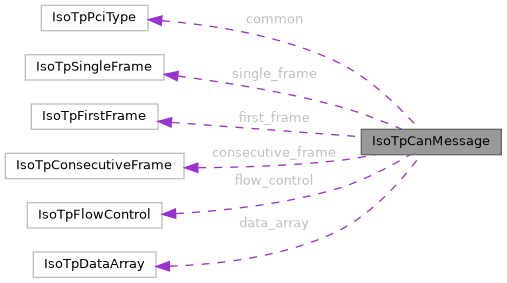

Collaboration diagram for IsoTpCanMessage:
Public Attributes | ||
| union { | ||
| IsoTpPciType common | ||
| IsoTpSingleFrame single_frame | ||
| IsoTpFirstFrame first_frame | ||
| IsoTpConsecutiveFrame consecutive_frame | ||
| IsoTpFlowControl flow_control | ||
| IsoTpDataArray data_array | ||
| } | as | |
Detailed Description
Definition at line 1403 of file iso14229.h.
Member Data Documentation
◆ common
| IsoTpPciType IsoTpCanMessage::common |
Definition at line 1405 of file iso14229.h.
◆ consecutive_frame
| IsoTpConsecutiveFrame IsoTpCanMessage::consecutive_frame |
Definition at line 1408 of file iso14229.h.
◆ data_array
| IsoTpDataArray IsoTpCanMessage::data_array |
Definition at line 1410 of file iso14229.h.
◆ first_frame
| IsoTpFirstFrame IsoTpCanMessage::first_frame |
Definition at line 1407 of file iso14229.h.
◆ flow_control
| IsoTpFlowControl IsoTpCanMessage::flow_control |
Definition at line 1409 of file iso14229.h.
◆ single_frame
| IsoTpSingleFrame IsoTpCanMessage::single_frame |
Definition at line 1406 of file iso14229.h.
The documentation for this struct was generated from the following file:
